POWER REQUIREMENTS
3-Phase, 100 Amps
208-220 Volts
250’ Power cable

CAMERAS & LENSES
6 – Ikegami HDK-77 cameras
2 – Fuji 50x HD lens
2 – Fuji 22x HD lens
1 – Fuji 17x HD lens
1 – Fuji 12x HD lens

SWITCHING & EFFECTS
72 Input GV Kayenne 250 HD Switcher
w/ 3 – K2 Server units
w/ K2 Dyno replay controllers

GRAPHICS FACILITIES
Chyron HyperX3 HD CG
w/ 2 channel, dual clip player
w/ Lyric 5.25, 8, 8.5 software

VIDEO RECORDERS
4 – AJA KiPro hard drive recorders
DVD recorder available
Additional recorders available, upon request

ENGINEERING
2 Ikegami HD video monitors
Sony & Marshall HD video monitors
3000 MVP Multiviewer monitor system
Evertz HD 64x64 video router
10 – Harris X50 HD-SD up/down converter
frame sync units

AUDIO FACILITIES
64 Input Yamaha M7CL digital audio console
Evertz Digital 64x64 audio router
RTS Zeus 3: 32 channel digital intercom system
w/ 12 master stations
Audio system includes
Standard announcer booth set-up
w/ headsets, stick, shotgun mics
w/ IFB system

CABLE
5500’ Triax (more available upon request)
2000’ 12 pair audio cable (DT-12 connectors)
1000’ 6 pair coax
Misc. single pair audio & video cable

TRUCK SPECS
40’ Straight Expando
w/ Dual 5 ton a/c units
40’ Truck Length
13’ Width with side expanded
2 Sets of stairs available, approx. 4’ length,
side or rear set up
Download Spec Sheet (PDF)

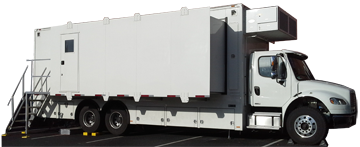

HD Expando
Production Truck

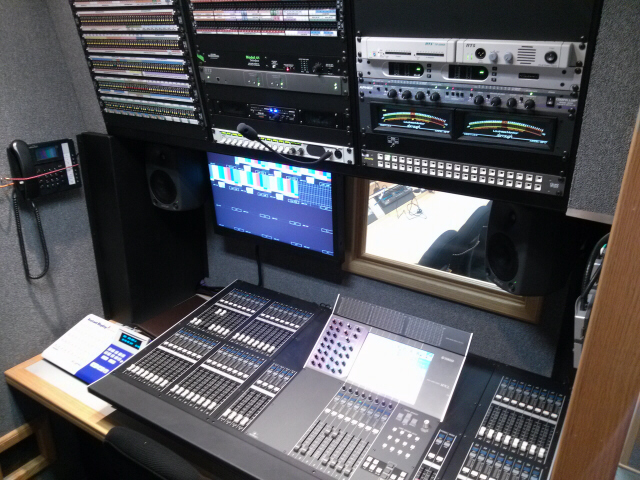

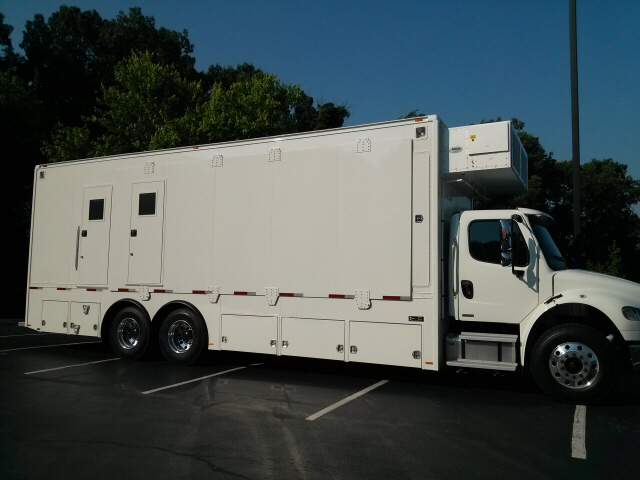

HD Truck Audio HD Truck Closed

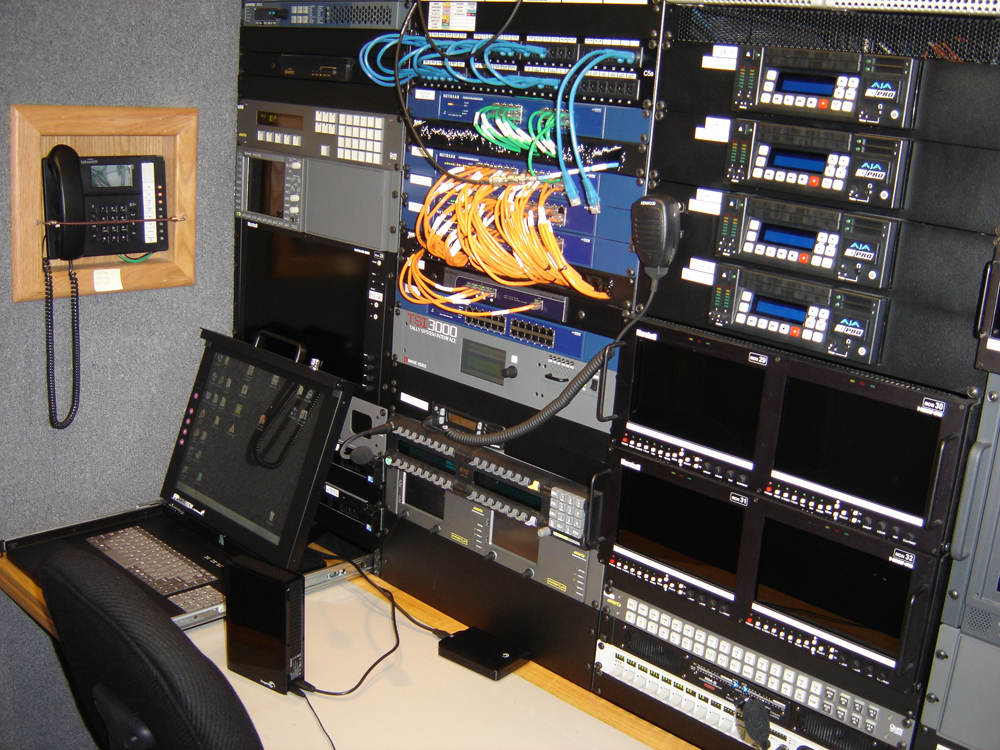

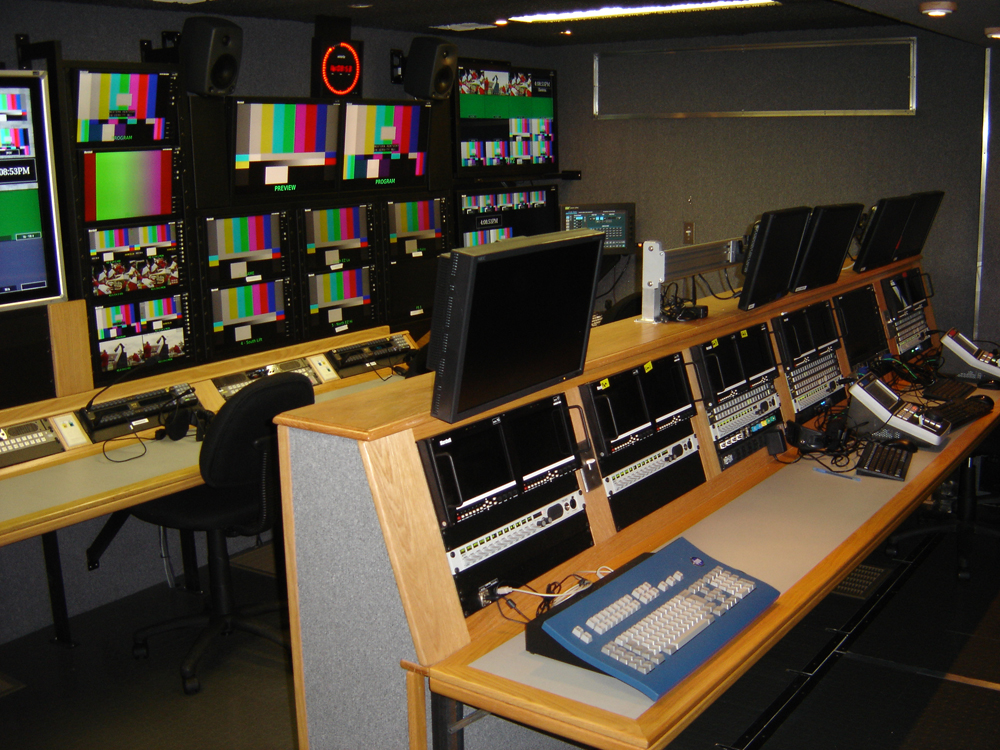

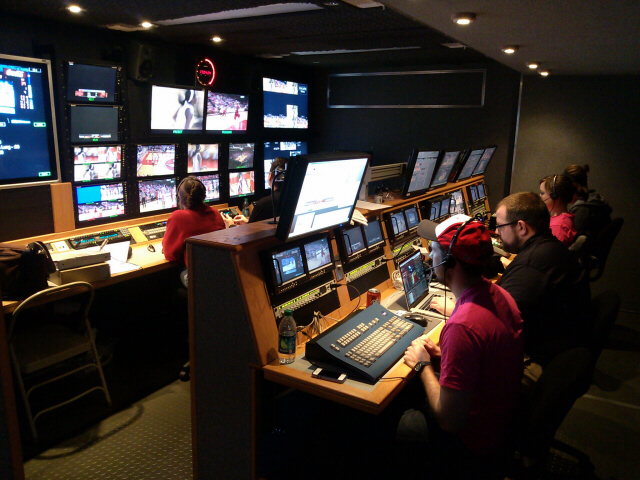

HD Truck Engineering HD Truck Production

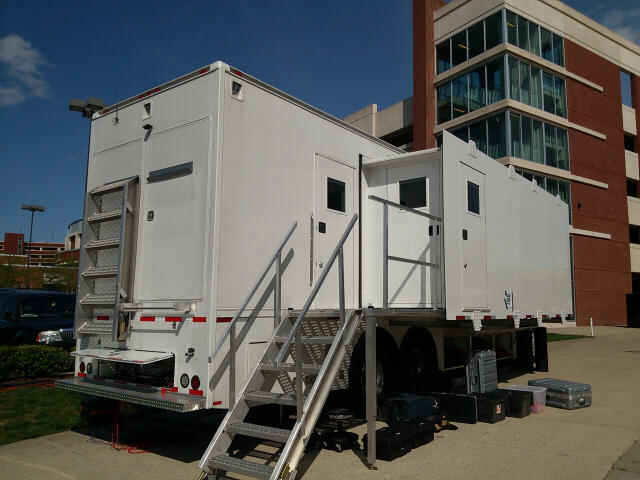

HD Truck rear-side view HD Truck shows AD Director TD

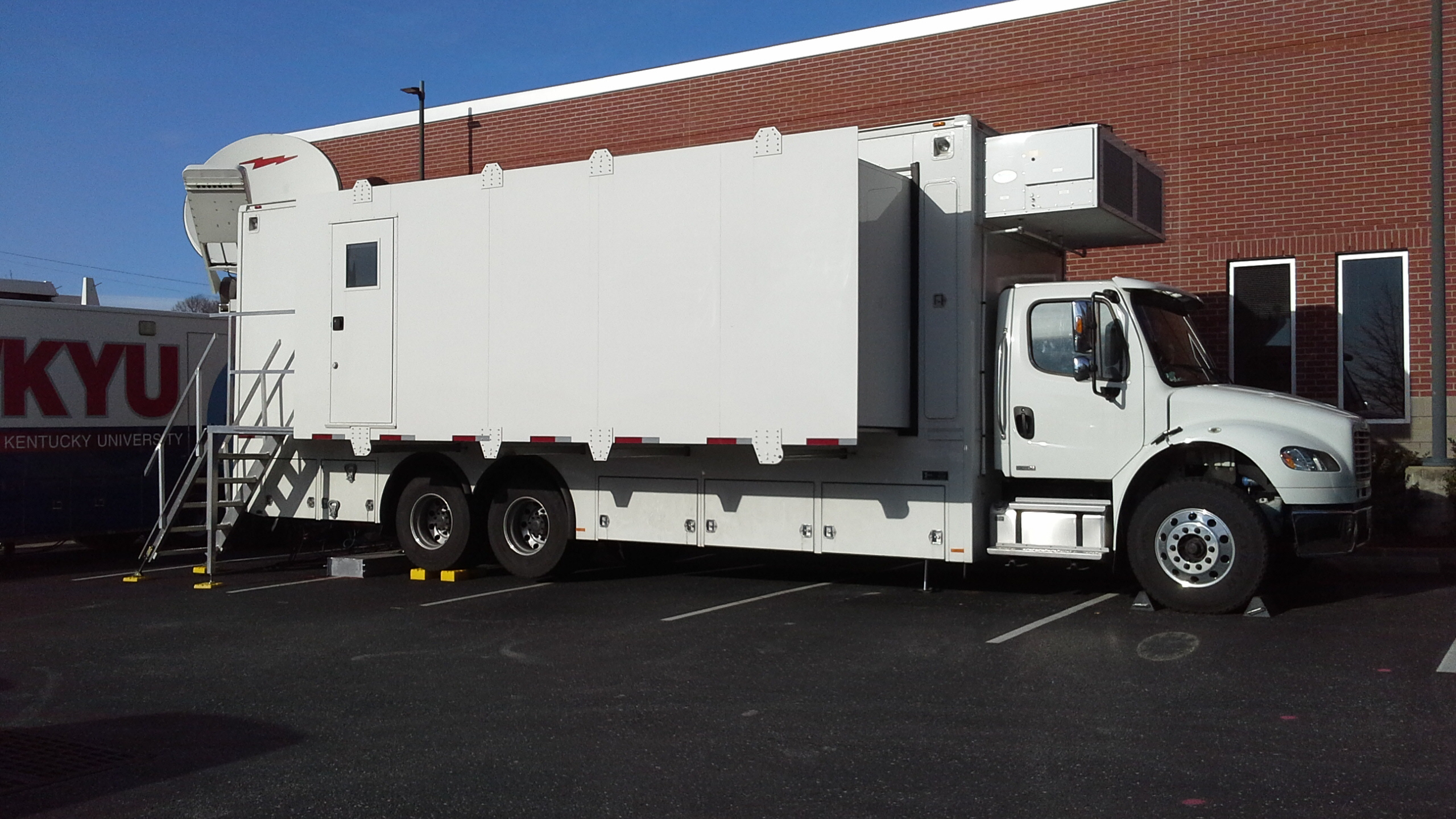

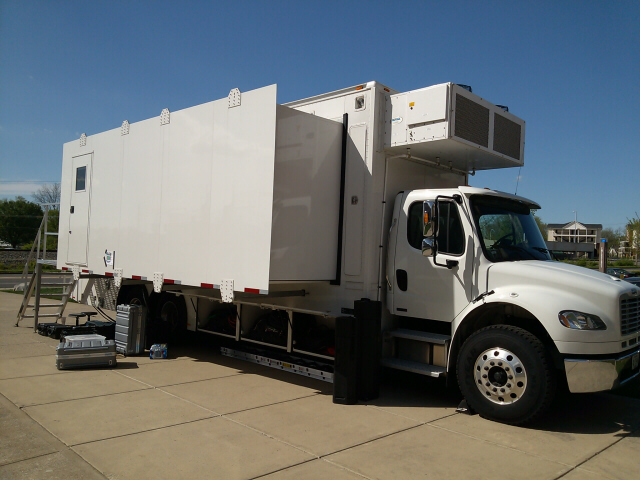

HD Truck shows expansion
